Fibre density and cross-section associate with hallmark pathology in early Alzheimer’s disease

Alzheimer's Research & Therapy volume 17, Article number: 73 (2025) Cite this article

Abstract

Background

Tau pathology in Alzheimer’s disease (AD) propagates trans-synaptically along structurally connected brain networks and in synergy with amyloid pathology it induces synaptic damage. However, the in vivo relationship of amyloid, tau and synaptic density with white matter (WM) structural changes has been studied rather limitedly. Recent advances in diffusion MRI processing allow quantification of apparent fibre density and fibre cross-section on the fixel level, i.e., individual fibre populations within one voxel. The aim of this study was to investigate the hypothesis of axonal loss due to tau propagation and amyloid pathology and its association with synaptic density in early disease stages.

Methods

Twenty-four patients with amnestic mild cognitive impairment (aMCI) and 23 healthy controls (HC) underwent baseline amyloid (11C-PiB/18F-NAV4694), tau (18F-MK-6240) and synaptic density (11C-UCB-J binding to SV2A) PET/MR in combination with diffusion MRI and cognitive assessments. A subset of 14 aMCI patients underwent follow-up visits after 2 years. First, a whole-brain fixel-based analysis was performed to identify differences in fibre density and fibre cross-section between HC and aMCI and longitudinally in the aMCI group. Next, a tract-of-interest analysis was performed, focusing on the temporal-cingulum bundle where most alterations have been shown in early AD. Tau and SV2A PET were quantified in the connected regions, i.e., hippocampus and posterior cingulate/precuneus (PCC-P). Amyloid PET centiloids were measured in the commonly used cortical composite volume-of-interest.

Results

At baseline, multiple WM tracts showed lower fibre density and lower fibre cross-section in aMCI compared to HC, and these parameters further decreased longitudinally in the aMCI group. In the temporal cingulum bundle, reduced fibre density was significantly associated with reduced hippocampal synaptic density while increased hippocampal and PCC-P tau specifically correlated with reduced fibre cross-section. Increased global amyloid burden was associated with reduced fibre density and fibre cross-section in the temporal cingulum bundle.

Conclusions

Our results suggest that WM degeneration already occurs in the aMCI stage of AD and alterations in apparent fibre density and fibre cross-section of the temporal cingulum bundle are associated with AD hallmark pathology.

Background

Alzheimer’s disease (AD) is characterized by the accumulation of amyloid-β (Aβ) plaques that spread from the neocortex to the mesiotemporal cortex [1, 2]. A second AD hallmark is the deposition of tau neurofibrillary tangles (NFTs) that starts in the (trans)entorhinal cortex, spreading first to other mesiotemporal brain regions such as the hippocampus and parahippocampal gyrus, before migrating towards neocortical areas [1]. In early disease stages, Aβ plaques induce functional network hyperexcitability [3,4,5] and facilitate the trans-synaptic spread of pathological tau out of the mesiotemporal cortex into neocortical brain regions [6,7,8,9,10,11]. Tau binding to presynaptic vesicles causes presynaptic dysfunction by lowering neurotransmission and ultimately results in synaptic loss [12, 13]. As the disease progresses and pathological tau is propagated along brain networks [14, 15], functional as well as structural network connectivity starts to decrease [16,17,18]. This network disconnection in AD has been confirmed by functional MRI studies [16, 19, 20]. Moreover, the analysis of the underlying structural connections has been performed by diffusion tensor imaging (DTI). Using this technique, Vogel et al. showed that highly connected regions are affected sooner by tau pathology along a structural network starting from the mesiotemporal cortex [9]. Additionally, DTI has been used to quantify fractional anisotropy (FA) and mean diffusivity (MD) as indications of white matter (WM) structure. Many studies have shown widespread FA decreases as well as MD increases in both patients with mild cognitive impairment (MCI) and AD [21,22,23,24]. Some studies have also demonstrated a relationship of these WM structural changes with Aβ plaque and tau NFT load [25,26,27,28,29,30,31]. However, a crucial shortcoming of DTI is its inability to account for crossing fibres within WM voxels. As most of the brain’s WM voxels contain crossing fibres [32], the physiological interpretation of FA and MD measures is not entirely straightforward [33]. To overcome this, constrained spherical deconvolution (CSD) has been proposed for processing of diffusion-weighted magnetic resonance images (dMRI) to obtain fibre orientation distribution functions [34]. This method can tackle the problem of crossing fibres and can detect specific fibre bundles within a voxel (i.e. fixels) [35]. Correspondingly, measures of apparent fibre density (FD), fibre cross-section (FC) or a combination of both apparent fibre density and cross-section (FDC) can be derived from a fixel-based analysis (FBA) to investigate microstructural (FD) and macroscopic (FC) differences in WM bundles [35].

Recent studies have focused on this fixel-based approach to study WM structural changes in MCI and AD. Mito et al. [36] identified the temporal cingulum bundle as the only WM bundle with decreased FDC in MCI whereas patients with AD showed decreased FDC in many more tracts, with largest effect sizes in the posterior parietal WM and parahippocampal aspect of the cingulum bundle. Giraldo et al. [37] demonstrated decreased FD and FC in the splenium, cingulum and longitudinal fasciculi in a combined cohort of AD and MCI compared to cognitively unimpaired subjects. However, longitudinal evaluations of FD, FC and FDC have not been investigated and their associations with tau, amyloid, synaptic density and cognition remain elusive.

In this work, we aimed to investigate the hypothesis that spreading of pathological tau through WM bundles in the presence of amyloid pathology would be associated with WM micro- and macrostructural alterations that are also related to loss of synaptic density. Therefore, we first assessed to what extent WM micro- and macrostructural alterations were present in our cohort. We evaluated FD, FC and FDC in a whole-brain FBA, both cross-sectionally comparing patients with amnestic MCI (aMCI) versus healthy controls (HC), as well as longitudinally within the cohort of aMCI patients over a 2-year follow-up period. Second, we performed a tract-of-interest analysis, focusing on the temporal cingulum bundle that connects the hippocampus and posterior cingulate cortex/precuneus, both of which are regions implicated in early tau pathology [38] and synaptic loss [39]. This enabled the investigation of our study hypothesis evaluating the relationship of mean FD, FC and FDC across the temporal cingulum bundle with tau and synaptic density PET measures in the adjacent brain regions and with cerebral amyloid load.

Methods

Participants

Eligible patients were diagnosed with aMCI according to the clinical Albert criteria [40], and were referred by a neurologist or psychiatrist from the tertiary memory clinic of the Leuven University Hospital or from an independent neurology practice specialized in dementia between April 2018 and December 2021. All patients had a clinical dementia rating (CDR) score of 0.5 at inclusion. HC between 50 and 85 years old were recruited through local newspapers and internet advertisements. Physical and mental health was thoroughly assessed by urine and blood analysis as well as by neuropsychological testing. Exclusion criteria for HC were history of major neurologic, psychiatric or internal pathology, history of alcohol or other drug abuse and MR abnormalities including brain white matter disease Fazekas 3. All subjects underwent cognitive screening covering domains of global cognition (Mini-Mental State Examination (MMSE)), memory (Rey Auditory Verbal Learning test (RAVLT)), attention and executive functioning (Trail Making Test (TMT) A and B, animal verbal fluency (AVF) and Raven’s coloured progressive matrices (RCPM)) and language (Boston Naming Test (BNT)). Depressive symptoms were assessed using the Beck Depression Inventory (BDI) and the Geriatric Depression Scale (GDS). All cognitive screening tests were repeated in aMCI patients at the 2-year follow-up study visits.

The study was approved by the local Ethics Committee UZ/KU Leuven and was conducted according to the latest version of the Declaration of Helsinki. Written informed consent was signed by all participants prior to study inclusion. This study is part of a larger, multimodal, multitracer imaging study which also included other patient populations (on ClinicalTrials.gov since 2018-05-02 as NCT03514524). Tau and synaptic vesicle 2 A (SV2A) PET data in a subset of this study population have been published previously [39].

Image acquisition

PET tracers were synthesized as previously described [41, 42]. All participants underwent a 30-min 18F-MK-6240 PET-MR (tau), acquired 90–120 min post-injection (injected activity 142±24 MBq) and a 30-min 11C-UCB-J PET-MR (synaptic density), acquired 60–90 min post-injection (injected activity 221±65 MBq). All scans were performed on an integrated timeofflight 3T PET-MR scanner (Signa, GE Healthcare, Milwaukee, WI, USA). Participants also underwent an amyloid 18F-NAV4694 or 11C-Pittsburgh compound B (11C-PiB) PET scan on the same PET-MR scanner or on a PET-CT scanner (Biograph TruePoint, Siemens, Erlangen, Germany), respectively.

18F-MK-6240 and 11C-UCB-J PET acquisitions were rebinned into 6 frames of 5 min and reconstructed using an ordered subset expectation maximization (OSEM) algorithm (4 iterations and 28 subsets), with corrections for scatter, random coincidences, deadtime and radioactive decay. Attenuation correction was zero-echo time (ZTE) MR-based as reported previously [43]. Three-dimensional isotropic 4 mm Gaussian smoothing was applied to reduce image noise. 18F-NAV4694 and 11C-PiB scans were reconstructed using VPFXS and OSEM algorithms (2 iterations and 32 subsets for 18F-NAV4694 and 3 iterations and 21 subsets for 11C-PiB) and 3D isotropic 4.5 mm and 2 mm Gaussian smoothing was applied, respectively.

Simultaneously with the 18F-MK-6240 or 11C-UCB-J PET, a 3D T1-weighted MRI (plane: sagittal; TE: 3.2 ms; TR: 8.5 ms; TI: 450 ms; flip angle: 12°; 1 mm isotropic voxels; acquisition matrix: 166 × 256 × 256) and multi-shell dMRI (plane: axial; TE: 86 ms; TR: 10.34 s; flip angle 90°; 2.5 mm isotropic voxels; phase encoding: RL; b-values: 0/700/1000/2000 s/mm2 with 16/20/32/66 uniformly distributed gradient directions respectively; acceleration factor (ASSET): 2; acquisition matrix: 96 × 96 × 48) were acquired using a vendorsupplied 8-channel brain phased array head coil. aMCI patients underwent 2-year follow-up 18F-MK-6240 and 11C-UCB-J PET scans as well as T1-weighted MRI and dMRI scans, all acquired using the same scanning protocols and same head coil on the same scanner that was used for baseline acquisitions.

Image analysis

PET

Reconstructed PET images were corrected for motion with PMOD software (v4.1, PMOD Inc. Zurich, Switzerland), using a rigid frame by frame co-registration to the first frame. Subsequently, all motion-corrected frames were averaged, and this mean image was rigidly co-registered to the corresponding T1-weighted MRI of the corresponding timepoint. The CAT12 toolbox of SPM12 (Statistical Parametric Mapping, Wellcome Trust Centre for Neuroimaging, University College, London, UK) was used for segmentation of T1-weighted MRI and hippocampus and posterior cingulate/precuneus (PCC-P) volumes-of-interest (VOIs) were delineated according to the Neuromorphometrics atlas. The rationale for quantifying a combined PCC-P VOI came from the pipeline that was used for segmenting the temporal cingulum bundle, which also includes both posterior cingulum and precuneus as inclusion VOIs for delineation of the tract [44]. A region-based voxelwise (RBV) partial volume correction (PVC) was applied to the standardized uptake value (SUV) maps for 18F-MK-6240 and 11C-UCB-J [45], where the PET resolution was modelled as a 3D isotropic Gaussian kernel with a full width at half maximum (FWHM) of 5 mm. All cortical VOIs as defined by the Neuromorphometrics atlas were provided individually as input for the RBV while white matter VOIs and cerebrospinal fluid (CSF) VOIs were merged to obtain one VOI for whiter matter and one VOI for CSF. For 18F-MK-6240, cortical VOIs as obtained from the Neuromorphometrics atlas were merged unilaterally into composite VOIs for the frontal, temporal, parietal, mesotemporal and occipital cortex to assure robustness of the PVC algorithm. Next, SUV ratios (SUVR) were calculated using the inferior cerebellar cortex for 18F-MK-6240 and centrum semiovale for 11C-UCB-J [46, 47]. For the voxel-based analyses, SUVR maps were spatially normalized to Montreal Neurological Institute (MNI) space using a non-linear registration as obtained by the CAT12 toolbox of SPM12 and smoothed using an isotropic Gaussian kernel with 8 mm FWHM (voxel size: 1.5 mm x 1.5 mm x 1.5 mm).

Amyloid 18F-NAV4694 and 11C-PiB SUVR were calculated using the cerebellar cortex as a reference region which was defined by the automated anatomical labelling (AAL) atlas (regions 91–108). The mean SUVR was calculated in a composite VOI consisting of bilateral frontal (AAL areas 3–10, 13–16, 23–28), parietal (AAL 57–70) cingulate (AAL 31–32 and 35–36) and lateral temporal cortices (AAL 81–82, 85–90) and converted to centiloids using the formula: CL = 132.53 × SUVRcomp -147.64 for 11C-PiB and CL = 107.78 × SUVRcomp − 114.71 for 18F-NAV4694, both validated in-house (not previously published). Amyloid PET scans were not corrected for partial volume effects. Additionally, amyloid PET scans were visually classified as being positive or negative by an expert reader (K.V.L.).

Diffusion MRI

Pre-processing of the diffusion-weighted images was performed using MRtrix3 software [48, 49] that included denoising [50], and corrections for Gibbs ringing [51], subject motion, EPI distortion [52] and intensity bias field [53]. Afterwards, data were up-sampled to an isotropic resolution of 1.3 mm. Using multi-shell, multi-tissue constrained spherical deconvolution [54], fibre orientation distributions (FODs) were calculated for each subject separately and at both timepoints for aMCI patients.

Fixel-based analysis

For cross-sectional FBA, a study-specific baseline WM FOD template was created from 30 included subjects (15 HC and 15 aMCI) and all subject-specific WM FODs were registered to this template using a non-linear registration as obtained by the mrregister command in MRtrix3. A whole-brain tractogram was created on this population template where first 20 million streamlines were generated, which were then filtered to 2 million streamlines by the SIFT algorithm [55, 56]. Finally, measures of FD, FC and FDC were computed for each subject. More specifically, FD was calculated as the apparent fibre density in the FOD lobe and FC was measured by the relative inter-subject deformation field. A more detailed description of these measures can be found in Raffelt et al. [35]. As recommended in the FBA pipeline, the FC maps were log-transformed and measures of FC reported throughout the paper are thus log-transformed FC values.

For longitudinal FBA in the aMCI group, a previously published workflow was followed [57]. First, we created intra-subject templates using the WM FODs from the two timepoints. WM FODs from both timepoints were then rigidly registered to the intra-subject template. Afterwards, a group- or inter-subject template was created from all intra-subject templates and the WM FODs were non-linearly warped to the final group template. As for the cross-sectional FBA, a whole-brain tractogram with 20 million streamlines was then created from this longitudinal population template and SIFT filtered to 2 million streamlines after which FD, FC and FDC were computed.

Tract-of-interest analysis

Similar to the creation of the WM FOD template, a study-specific baseline T1-weighted baseline MRI template was created which was used for parcellation by Freesurfer v6.0 and the MultiScale Brain Parcellator (MSBP) to obtain Volumes-Of-Interest (VOIs). Using these VOIs as in- and exclusion regions, the dissection pipeline FWT was used to isolate the temporal cingulum bundle as a tract-of-interest [44]. Supplementary Fig. 1 shows the dissection of the temporal cingulum bundle.

Statistical analysis

General statistical analyses were performed in GraphPad Prism version 9 (GraphPad Software, La Jolla, CA). Data are presented as mean ± standard deviation (SD) unless otherwise specified. Normality of the data distributions was assessed by Shapiro-Wilk tests (α = 0.05). Demographic characteristics were compared between groups using an unpaired Student t-test, unpaired Mann-Whitney U-test, Fischer’s exact test, Chi-square test or Chi-square test for trend as appropriate (α = 0.05).

PET voxel-based group comparisons were performed using an unpaired t-test in SPM with thresholds for cluster height and voxel height of PFWE < 0.05 and Puncorrected < 0.001, respectively. To exclude extracerebral clusters, a binary grey matter mask was applied. For correlation analyses, mean SUVR was calculated in the hippocampus and in a combined VOI of the posterior cingulate cortex and the precuneus.

For dMRI analyses, FD, FC and FDC of each fixel were compared in a general linear model between HC and aMCI patients at baseline. For longitudinal changes in the aMCI group, difference images were calculated for FD, FC and FDC by subtracting the timepoint 2 image from the timepoint 1 image and statistical inferences were performed on these difference images. For all FC and FDC analyses, total intracranial volume (TIV) was included as a nuisance covariate [58]. Images were smoothed using a connectivity-based smoothing with default smoothing parameters (10 mm full-width at half-maximum). Next, statistical inference was performed using a connectivity-based fixel enhancement (CFE) approach [59]. This provides family-wise error (FWE) corrected P-values for all individual fixels, based on non-parametric permutation testing over 5000 permutations. For longitudinal FBA, shuffling of independent and symmetric errors was performed through sign-flipping [60]. Significant fixels (PFWE < 0.05) were displayed as streamline segments on the group template and color-coded by streamline orientation (left-right = red; inferior-superior = blue; anterior-posterior = green).

For the tract-of-interest analysis, mean FD, FC and FDC were calculated using the isolated temporal cingulum bundle streamlines as a mask. Group comparisons of FD, FC and FDC in the temporal cingulum bundle were performed using an unpaired Student t-test for baseline comparisons, and a Paired student t-test for longitudinal comparisons. Correlations of baseline dMRI metrics in the temporal cingulum bundle with baseline PET outcomes were performed in the combined cohort of aMCI patients and HC using Pearson or Spearman correlations as appropriate. These analyses were performed on a significance level of α = 0.05 without correction for multiple comparisons due to the exploratory character.

Results

Clinical characteristics

A total of 26 HC and 30 aMCI patients underwent baseline 18F-MK-6240 and 11C-UCB-J PET scans of which 21 aMCI patients also underwent 2-year follow-up PET scans. dMRI was successfully acquired in a subset of 23 HC and 24 aMCI patients at baseline and in 14 aMCI patients at 2-year follow-up. All study analyses were performed on this cohort for which 18F-MK-6240, 11C-UCB-J PET and dMRI scans were available. Demographics of this cohort are shown in Table 1. Age and sex were not significantly different between the HC and aMCI groups. Amyloid PET was acquired at baseline for all participants except for one aMCI patient who terminated his study participation early. Based on visual assessments, the prevalence of amyloid positivity was higher in the aMCI group compared to the HC group (P < 0.0001). MMSE and RAVLT scores were significantly lower in aMCI compared to HC at baseline (both P < 0.0001) and a significant longitudinal decline was present for both test scores in the aMCI group (MMSE: P = 0.04; RAVLT: P = 0.03). Time between baseline and follow-up tau and synaptic density PET was 25 ± 1 months (range: 23–28 months) for both.

Table 1 Demographical and clinical characteristics of included participants
Full size table

White matter structure

FD was significantly lower in aMCI patients compared to HC in the fornix and the splenium of the corpus callosum (Fig. 1A). FC was also significantly lower in aMCI patients compared to HC in parts of the temporal cingulum bundle, parts of the inferior longitudinal fasciculus, and in parts of the uncinate fasciculi (Fig. 1B). FDC was significantly lower in aMCI patients compared to HC in parts of the temporal and cingulate cingulum bundle, in parts of the inferior longitudinal fasciculus and in the fornix and splenium of the corpus callosum (Fig. 1C). Since FDC and FC were significantly reduced in the temporal cingulum bundle, and this bundle connects early tau accumulating regions [39], we isolated this tract using the FWT pipeline [44]. In the temporal cingulum bundle, FD was lower in aMCI patients compared to HC in the left hemisphere (t = 3.01, P = 0.004) and in the right hemisphere (t = 3.00, P = 0.004). FC was also lower in aMCI patients compared to HC in the left hemisphere (t = 3.2, P = 0.004) and in the right hemisphere (t = 2.0, P = 0.05). FDC was lower in aMCI patients compared to HC in the left hemisphere (t = 3.8, P = 0.0004) and in the right hemisphere (t = 3.3, P = 0.002).

Fig. 1
figure 1

Cross-sectional whole-brain fixel-based analysis. (A) Decreased fibre density, (B) fibre cross-section and (C) fibre density and cross-section in aMCI patients compared to HC. Results are shown as streamline segments traversing fixels (PFWE<0.05) and coloured by diffusion direction: red = right-left; green = anterior-posterior; blue = inferior-superior. Images are shown in radiological convention. aMCI = amnestic mild cognitive impairment; HC = healthy controls

Full size image

Longitudinally, the whole-brain FBA in the aMCI group showed fixels with significantly reduced FD in the fornix and splenium of the corpus callosum (Fig. 2A). FC was significantly reduced in the temporal and cingulate cingulum bundle, in parts of the superior and inferior longitudinal, and in parts of the left inferior fronto-occipital fasciculi (Fig. 2B). FDC was significantly reduced in a posterior part of the inferior fronto-occipital fasciculus, in the splenium of the corpus callosum, fornix and in parts of the inferior longitudinal fasciculus (Fig. 2C). As for longitudinal structural changes in the temporal cingulum bundle, FD further decreased significantly in the left hemisphere (t = 2.7, P = 0.02) but not in the right hemisphere (t = 1.6, P = 0.1) in the aMCI group. Longitudinal FDC and FC decreases were significant in both the left (FDC: t = 3.6, P = 0.003; FC: t = 6.5, P < 0.0001) and right (FDC: t = 2.2; P = 0.04; FC: t = 3.0, P = 0.01) hemisphere.

Fig. 2
figure 2

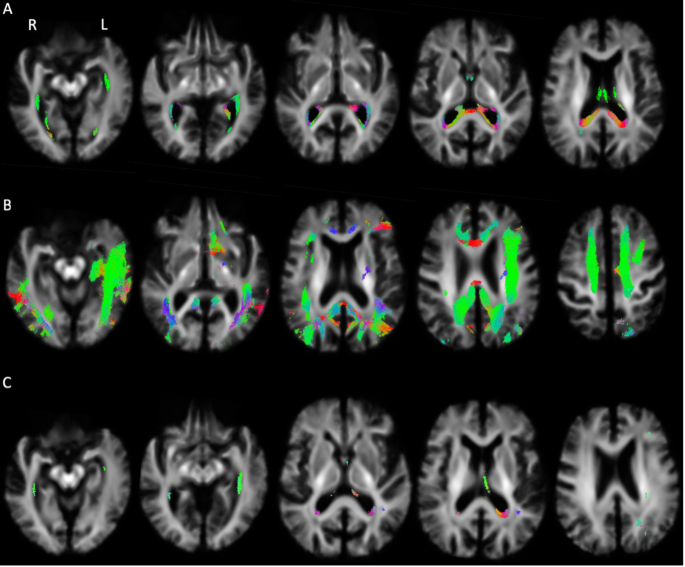

Longitudinal whole-brain fixel-based analysis. (A) Decreased fibre density, (B) fibre cross-section and (C) fibre density and cross-section in aMCI patients at follow-up compared to baseline. Results are shown as streamline segments traversing fixels (PFWE<0.05) and coloured by diffusion direction: red = right-left; green = anterior-posterior; blue = inferior-superior. Images are shown in radiological convention. aMCI = amnestic mild cognitive impairment

Full size image

Amyloid, tau and synaptic density PET

Amyloid load was significantly higher in aMCI patients compared to HC in all grey matter regions (Fig. 3A) whereas tau was significantly higher in medial temporal regions, posterior cingulate, precuneus, frontal and lateral temporal regions (Fig. 3B). Synaptic density was significantly lower in aMCI patients compared to HC in the right medial temporal cortex (Fig. 3C). These results are consistent with our pilot study that included a subset of this study cohort [39] and are reported in more detail elsewhere for the full cohort [61].

Fig. 3
figure 3

Voxel-based group comparisons. Clusters of significantly (A) increased amyloid PET, (B) increased tau PET and (C) reduced synaptic density PET in aMCI compared to HC. Colour bars indicating SPM t-values. Thresholds for cluster height and voxel height were PFWE < 0.05 and Puncorrected < 0.001, respectively. aMCI = amnestic mild cognitive impairment; HC = healthy controls; PET = positron emission tomography; SPM = statistical parametric mapping

Full size image

Correlation of PET biomarkers with white matter structure

In the full set of aMCI and HC subjects, baseline temporal cingulum FD correlated significantly with baseline hippocampal synaptic density (left: rp = 0.29, P = 0.05; right: rp = 0.37, P = 0.01) but no significant associations were found with hippocampal tau, PCC-P tau, nor with PCC-P synaptic density (all P > 0.1). FD in the temporal cingulum bundle was also significantly associated with amyloid as quantified in the composite VOI (left: rs = -0.40, P = 0.006; right: rs = -0.30, P = 0.04). In contrast, temporal cingulum FC was not significantly associated with hippocampal nor PCC-P synaptic density (all P > 0.1). However, it did correlate significantly with hippocampal tau in the left but not right hemisphere (left: rs = -0.43, P = 0.003; right: rs = -0.25, P = 0.09). Additionally, FC was significantly associated with PCC-P tau (left: rs = -0.34, P = 0.02; right: rs = -0.36, P = 0.01) and also with amyloid in the left but not right hemisphere (left: rs = -0.35, P = 0.02; right: rs = -0.26, P = 0.08). FDC was significantly associated with hippocampal tau in the left but not right hemisphere (left: rs = -0.29, P = 0.05; right: rs = -0.18, P = 0.23) and with PCC-P tau in the left but not right hemisphere (left: rs = -0.30, P = 0.04; right: rs = -0.28, P = 0.06). Moreover, FDC was significantly associated with hippocampal SV2A (left: rp = 0.34, P = 0.02; right: rp = 0.35, P = 0.02) but not with PCC-P SV2A (both P > 0.05). Finally, FDC was significantly associated with amyloid (left: rs = -0.45, P = 0.002; right: rs = -0.35, P = 0.02). These results are summarized in Fig. 4 and individual correlation plots are shown in Supplementary Figs. 2–4.

Fig. 4
figure 4

Association of temporal cingulum fixel metrics with PET biomarker findings. The correlation matrix is coloured by Spearman correlation coefficients and significance is indicated by *P < 0.05, **P < 0.01, ***P < 0.005, uncorrected for multiple comparisons. CompVOI = composite volume-of-interest; FC = fibre cross-section; FD = fibre density; FDC = fibre density and cross-section; HpC = hippocampus; PCC-P = posterior cingulate cortex and precuneus; L = left; R = right

Full size image

Discussion

In this prospective longitudinal cohort study, we quantified WM micro- and macrostructural changes cross-sectionally in aMCI patients versus HC and longitudinally over 2 years in aMCI patients. We also assessed correlations of WM structural changes with AD hallmark pathology as measured by amyloid, tau and SV2A PET. The main findings of our study are that (i) FD, FC and FDC are reduced already in the aMCI stage of AD when compared to HC; (ii) FD, FC and FDC further decrease longitudinally and extensively along multiple fibre bundles; and (iii) FD reduction was associated with hippocampal SV2A loss while FC reduction was associated with both hippocampal and PCC-P tau pathology.

Cross-sectionally, FC and FDC were both reduced in the temporal cingulum bundle. This result in aMCI patients is consistent with previous FBA findings in AD [36, 37, 62, 63]. While the microstructure of the tract (FD) did not change significantly, morphological atrophy as measured by FC was statistically significant and spatially extensive. In contrast to our findings, Mito et al. [36]. found no significant difference in a whole-brain FBA in MCI versus HC, although a tract-of-interest analysis showed significantly decreased FDC in the left temporal cingulum bundle. In our study, all patients (except for one with unknown amyloid status) were positive for amyloid PET, indicating that they are on the AD continuum. Moreover, next to FDC, we investigated FD and FC individually in contrast to comparing only FDC value between groups. Next to the whole-brain FBA, our tract-of-interest findings confirm that the temporal cingulum bundle is affected in early disease stages. This is in line with previous voxel-based DTI findings [25]. In early disease stages, the hippocampus and posterior cingulate cortex/precuneus, connected by the temporal cingulum bundle, show hypometabolism [64, 65] and functional disconnection [66] as a result of AD pathology, although hypometabolism shows considerable variability in medial temporal regions [67]. In addition, the temporal cingulum bundle is part of the Papez circuit that is associated with memory formation and changes in the functional connectivity of the Papez circuit along the AD continuum have been shown previously [17]. With this study, we provide evidence for WM structural changes underlying this functional disruption.

Longitudinal analyses showed further reductions in FD, FC and FDC within the aMCI group. Nonetheless, differences concerning the specifically affected bundles and the spatial extent as to which they are affected, were present. Interestingly, we found longitudinal reductions in FD mostly in short association fibres whereas FC was reduced in long association fibres. The more extensive reductions found in FC, a marker of macroscopic change, compared to those found on FD, a marker of microscopic change, indicate that axonal density loss in AD predominantly manifests as bundle atrophy rather than microscopic rarefaction of axonal density within the same bundle’s cross-section. In other words, it seems that rather than the bundle losing a number of axons but retaining its overall size, the bundles tend to shrink.

These findings are compatible with our a priori hypothesis that already in aMCI, spreading of pathological tau through WM bundles in the presence of amyloid pathology would lead to decreases in WM micro- and macrostructure that are also related to loss of synaptic density. Indeed, these findings indicate a disease-specific axonal loss. We found that quantitative amyloid burden was significantly associated with FD, FC and FDC. As previously highlighted by Dewenter et al. [62], the effect of amyloid pathology on FD might be explained by concomitant small vessel disease that was not accounted for in this study. However, the association of amyloid with fixel metrics is in agreement with previous DTI studies demonstrating WM alterations in the presence of increased amyloid burden in early AD stages [31, 68]. Moreover, single-cell transcriptomic analysis highlighted that myelination-related processes were recurrently perturbed in early AD pathology, i.e., at high amyloid burden but modest tau pathology and cognitive impairment [69].

Next, in agreement with the hypothesis postulated by McAleese et al. [70]., we found that tau pathology in connected regions was associated with FC and FDC of the connecting WM bundle. Specifically in the left hemisphere, stronger associations of FC were found with hippocampal tau compared to PCC-P tau. These findings are in line with the idea of axonal and trans-synaptic spread of tau pathology along structurally connected regions in AD [71, 72]. Interestingly, tau pathology was not significantly associated with FD changes in WM bundles, which is compatible with the idea that tau pathology specifically induces morphological WM atrophy without affecting microstructural axon density. Compared to previous DTI studies, this finding provides new insights into the effects of tau pathology on WM structural alterations, and has very recently been confirmed in a larger study [73]. Our findings are at odds with a previous study that did not find an association of tau pathology with fixel-based metrics [62]. Of note, we quantified tau pathology in regions connected by the tract-of-interest, which is different from the tau Braak stage positivity classification that was used in this previous study [62].

As for the association of fixel-based metrics with SV2A PET, we found that synaptic density in the hippocampus was associated specifically with FD but not with FC. A lack of association with PCC-P synaptic loss can be explained by the lack of SV2A group differences in this region.Importantly, the white matter region centrum semiovale was used to quantify SV2A PET data. The reference region was created from a combined dataset of 78 HC that was available in-house. More detailed information on the creation of this reference region can be found in Michiels et al. [74] The same reference region was used for all subjects, irrespective of the presence of white matter lesions in this region in patients. Therefore, we cannot exclude the possibility that WM lesions influenced this association. To date, only one study investigated the association of structural connectivity in AD patients with SV2A PET and reported decreased structural connectivity in regions with lower synaptic density [75]. The association of SV2A PET with functional connectivity on the other hand was investigated more extensively, and studies consistently report positive associations of synaptic density with functional connectivity, either in the default-mode and executive control networks [76] or in frontal brain areas [75]. Additionally, SV2A PET has been shown to correlate with reduced functional connectivity in frontotemporal lobar degeneration [77] and in depression [78].

Interestingly, correlations of FBA metrics with PET biomarkers seemed stronger in the left hemisphere compared to the right. Upon further investigating this lateralization effect, we found that FC in the temporal cingulum bundle was not significantly different between the left and right hemisphere (t = 1.9; P = 0.07) but FD was significantly lower in the left hemisphere compared to the right (t = 5.4; P < 0.0001). However, no significant differences were present between both brain hemispheres in amyloid, tau and SV2A PET. A speculative explanation could be derived from the fact that most participants were right-handed indicating the left hemisphere to be dominant. However, further research is needed to clarify this finding.

Our study took a multimodal approach including assessments of amyloid, tau and SV2A PET and cognitive evaluations. The use of advanced techniques enabled the investigation of axonal loss with increased anatomical accuracy compared to previous voxel-based approaches. Moreover, the longitudinal study design allowed the assessment of changes in WM structure along the clinical progression of MCI to AD. As such, we extend previous findings considerably and provide useful insights for future research. Technically, the acquisition of multi-shell dMRI data allowed for the application of multi-shell multi-tissue CSD, which provides a more detailed characterization of WM microstructure compared to single-shell CSD.

However, there were a number of limitations to our study. Our sample size, especially for longitudinal assessments, was rather small which limited the power of statistical analyses. It should be noted that the correlation analyses were regarded as exploratory and therefore not corrected for multiple comparisons. However, as it is a multimodal, multitracer PET-MR study, it gives a first and integrated evaluation of hallmark parameters for early AD. Notably, we report the first longitudinal evaluation of fixel metrics in an early AD cohort. Although prevalent in AD pathology, we did not further characterize WM hyperintensities on MRI although these lesions have been shown to induce decreases in FD [62, 79]. However, as specified in the in- and exclusion criteria, we excluded HC with a Fazekas score of 3. Although WM hyperintensities visually seemed more prevalent in the aMCI group, our whole-brain FBA results demonstrate that WM macrostructural alterations as a result of axonal atrophy constitute the main effect of WM degeneration in aMCI. Additionally, these WM hyperintensities rarely encompassed the temporal cingulum bundle thereby limiting the probability for false positive findings in the tract-of-interest analysis. Next, we did not investigate the correlation of WM structural changes with gray matter atrophy. Finally, amyloid PET data were not corrected for partial volume effects.

Conclusion

In conclusion, we show widespread axonal loss already in the aMCI stage of AD that manifests to a certain extent as microstructural reductions but mostly as macrostructural WM reductions. The temporal cingulum bundle plays a central role in disease progression in AD and its structural changes are related to amyloid, tau and synaptic density alterations, in particular in the hippocampus and posterior cingulate/precuneus. Future work investigating larger patient cohorts and other WM tracts longitudinally are warranted.

Data availability

Anonymized data will be deposited in an access-controlled file server used by the academic research PET imaging group, which can be shared upon reasonable request from any qualified investigator on approval by the Ethics Committee of the local university hospital.

Abbreviations

AAL:

Automated anatomical labelling

AD:

Alzheimer’s disease

aMCI:

Amnestic mild cognitive impairment

AVF:

Animal verbal fluency

BDI:

Beck’s depression inventory

BNT:

Boston naming test

CDR:

Clinical dementia rating scale

CFE:

Connectivity-based fixel enhancement

CSD:

Constrained spherical deconvolution

CSF:

Cerebrospinal fluid

dMRI:

Diffusion-weighted MRI

DTI:

Diffusion tensor imaging

FA:

Fractional anisotropy

FBA:

Fixel-based analysis

FC:

Fibre cross-section

FD:

Apparent fibre density

FDC:

Fibre density and cross-section

FOD:

Fibre orientation distribution

FWE:

Family-wise error

FWHM:

Full width at half maximum

GDS:

Geriatric depression scale

HC:

Healthy controls

NFTs:

Neurofibrillary tangles

MCI:

Mild cognitive impairment

MD:

Mean diffusivity

MMSE:

Mini-mental state examination

MNI:

Montreal neurological institute

MSBP:

MultiScale brain parcellator

OSEM:

Ordered subset expectation maximization

PCC-P:

Posterior cingulate cortex/precuneus

PVC:

Partial volume correction

RAVLT:

Rey auditory verbal learning test

RBV:

Region-based voxelwise

RCPM:

Raven’s coloured progressive matrices

SD:

Standard deviation

SPM:

Statistical parametric mapping

SUV:

Standardized uptake value

SUVR:

Standardized uptake value ratio

SV2A:

Synaptic vesicle protein 2 A

TIV:

Total intracranial volume

TMT:

Trail making test

VOI:

Volume-of-interest

WM:

White matter

ZTE:

Zero-echo time
